Snapshots

Snapshot is the save state of the whole scene. This includes camera position, objects visibility and transformations, lighting parameters, environment settings and so on.

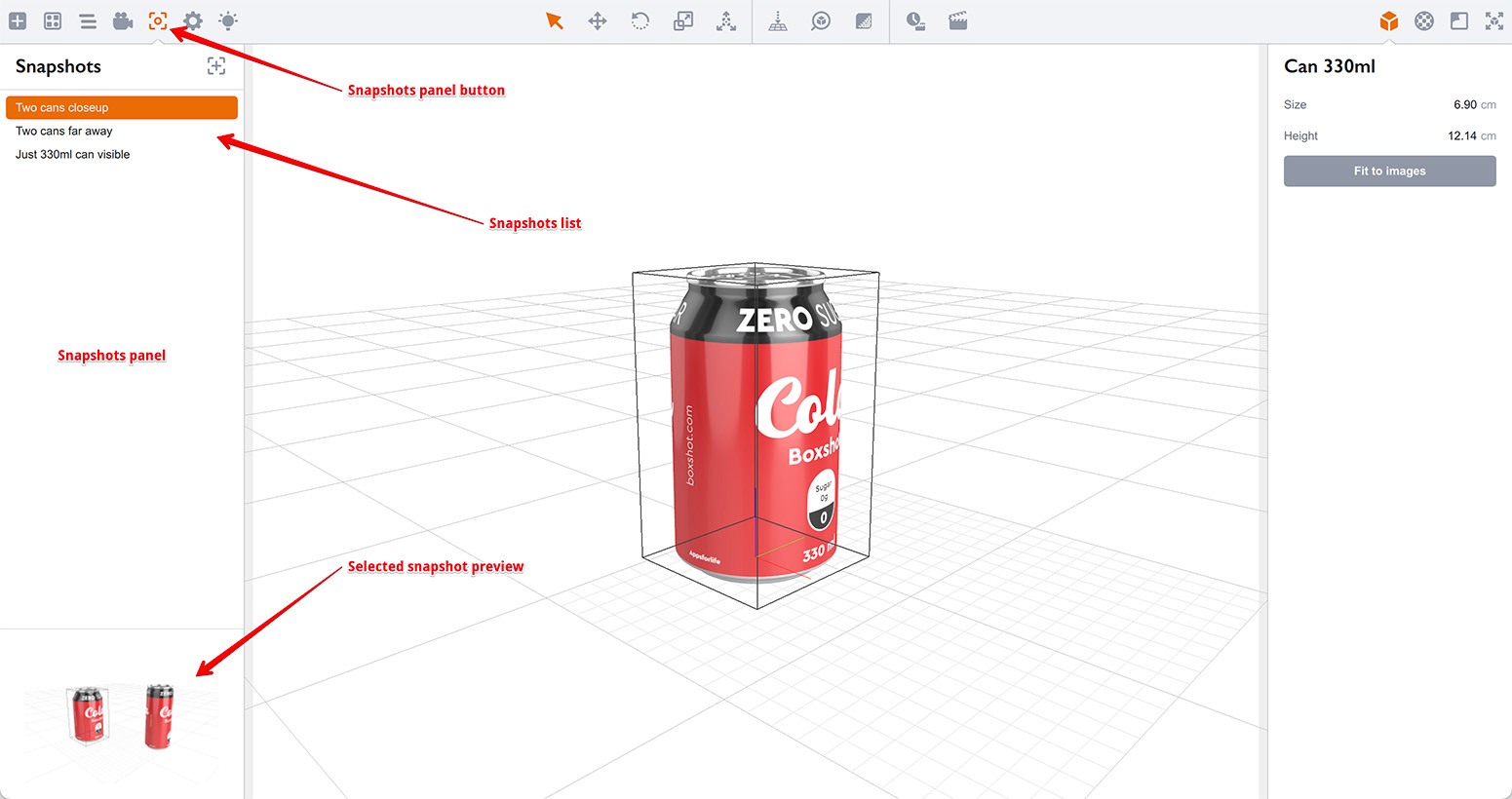

You can create as many snapshots as needed and switch between them using the snapshots panel on the left.

The snapshots panel contains the list of snapshots and the preview of the currently selected snapshot at the bottom.

Managing Snapshots

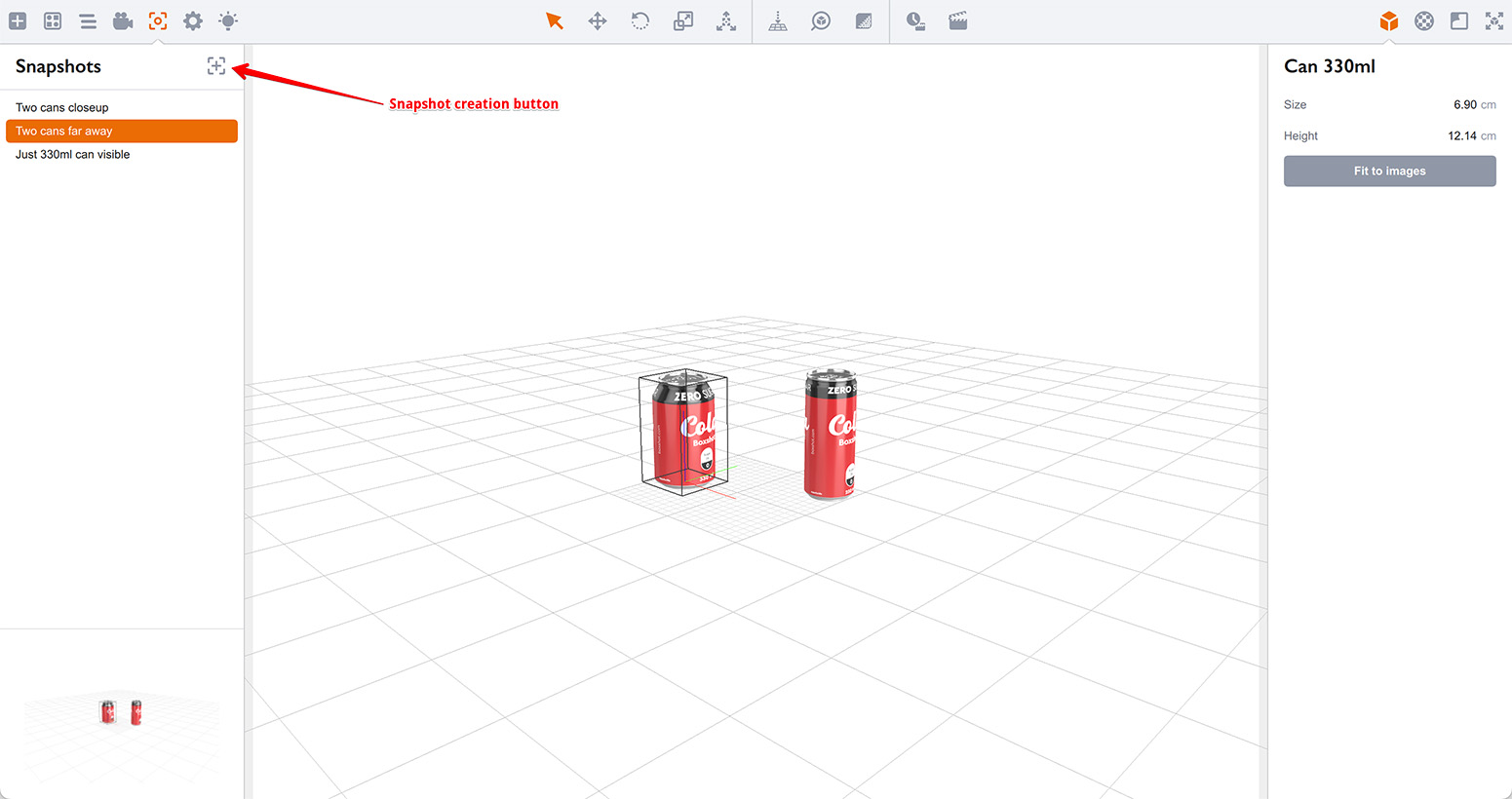

You can make a new snapshot by clicking the button at the top right corner of the snapshots panel:

New snapshots are added to the end of the list.

You can re–order the snapshot using the items in the right click context menu.

You can activate snapshots by double–clicking them in the list or by right–clicking it and using the popup menu.

Deleting and renaming snapshots is also done using the context menu.

You can update the snapshot by re–capturing the current scene. Again, this is done using the context menu. Everything is there.

Stored Information

Each snapshot stores the following information:

• Camera parameters — position, angles, field of view, distance and so on;
• Environment settings — HDR environment image and its parameters;
• Background settings — background mode, image and tint, if applicable;
• Floor — all the floor parameters, including the reflection;
• Sunlight — the sun lighting angles, intensity and color;
• Visibility — the visibility state of every element of the scene;
• Transformation — offset, rotation and scale of all the scene objects;
• Selection — the currently selected shapes in the scene.

Every time you take or update the snapshot, all the information above is captured and stored. This happens regardless of the snapshots option, Boxshot simply captures everything.

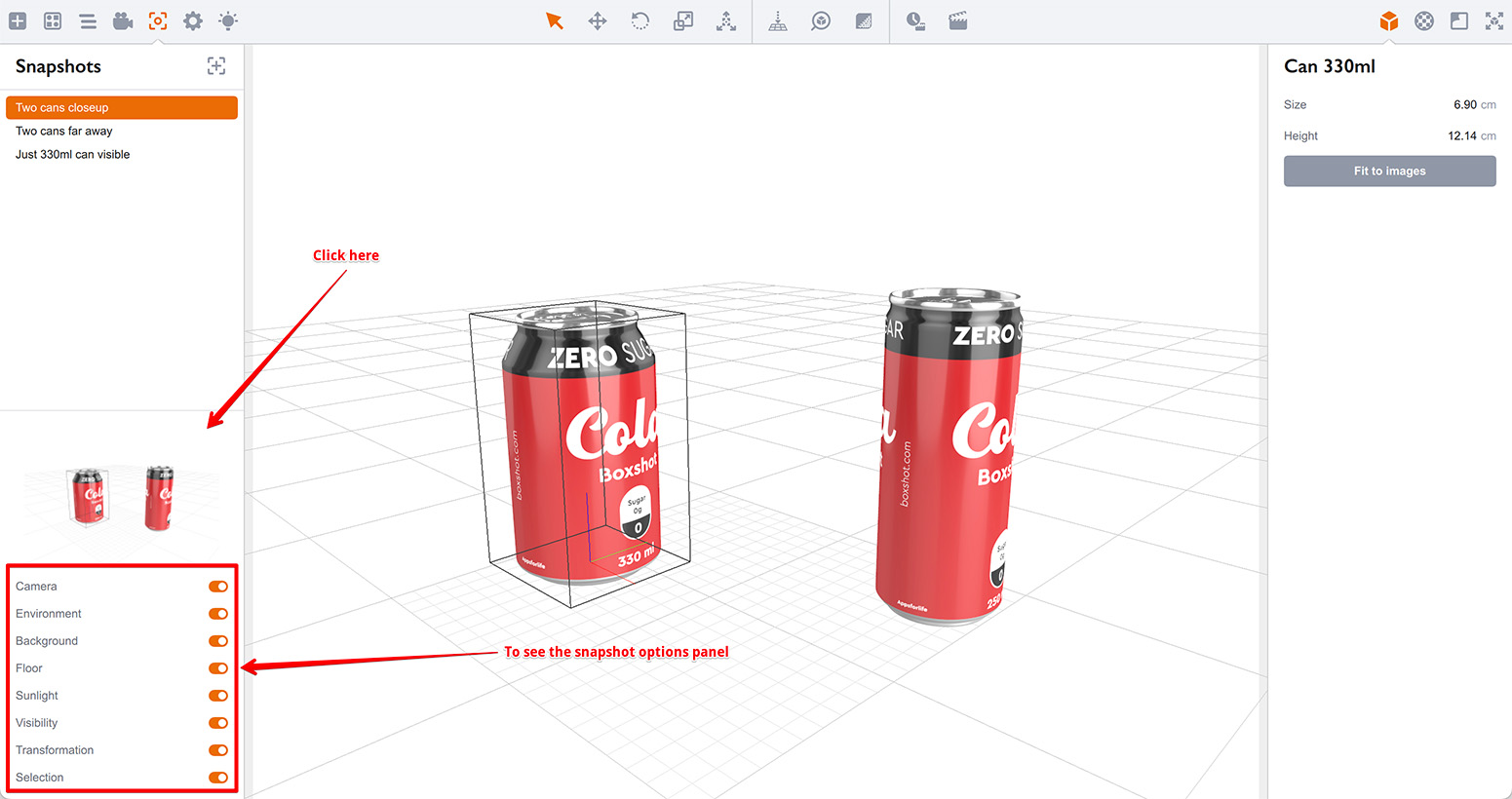

However, when it comes to activating the snapshot, Boxshot takes into account which parameters to apply to the scene. You can configure that using the right–click menu or by clicking the snapshot preview. This opens a very convenient panel with snapshot options:

Each parameter represents an item from the list above. If something is unchecked, it will not be applied when you activate the snapshot.

This way you can make snapshots that just hide or show some elements, or just change the background or camera, leaving the rest of the scene intact.

Using Snapshots for Scene Animation

Snapshots can be used with transition animation renderer to create complex scene animations.

The snapshots can contain scene element in different locations with a different camera views and you can render the transition between two or more snapshots. This effectively allows you quite a complex scene animations with a very intuitive setup.

Notes

Although snapshots store the scene state, changing the scene itself may affect this. Read the information below to avoid any possible issues.

• Deleting scene objects also delete them from snapshots. Activating the snapshot will not restore deleted objects;
• New scene objects are not affected by the snapshots created before them;
• Boxshot stores relative transformation of the object, so if you move an object to another node or re–group them, transformations will likely be affected;
• It is OK to rename scene objects, this does not affect snapshots;
• Snapshots don’t store materials, decals and shapes parameters, only visibility and transformation;
• Snapshots don’t store background and environment images, only their pats (same as materials).
