Intersecting Holes

Origami does not support more than one hole in the same place. So if you see this error you probably have two holes that overlap in your die drawing:

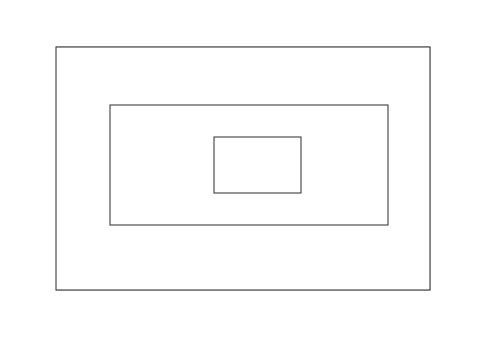

The other possibility is that you have one hole nested inside another:

You need to make sure there are no hole intersections in your die-drawing.

What to do?

• Find the intersecting holes.
• Combine overlapping holes and delete nested holes.
• Make sure the error disappears.
