Outside Hole

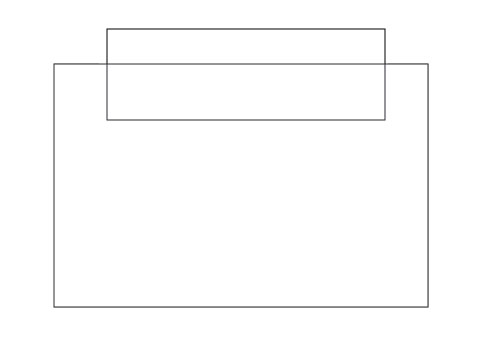

Here’s the outside hole problem in a nutshell: there’s a hole that extends outside of the outline path:

Origami tries to find a cut path that contains the whole die drawing - the outline - but fails to do so as a hole extends beyond the outline.

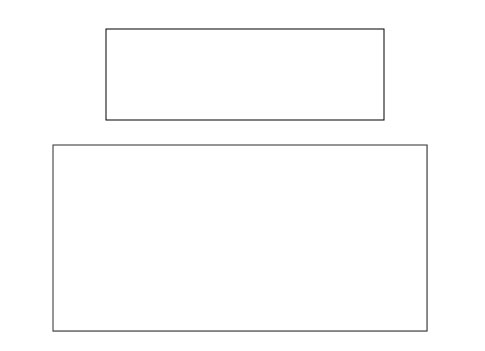

The other version of the error is having two separate sets of dielines:

The hole above is completely outside the main layout, so Origami can’t even tell which layout is the main one.

What to do?

• Locate any path that runs outside of the main layout.
• Fix that path.
